Elements and Tags

1.3. Elements and Tags#

As mentioned earlier, the main building block of HTML are tags, which define how to display different parts of a webpage. Each tag is written inside angle brackets, like this: <tag>. A HTML page is a hierarchy of tags, with tags nesting inside each other.

These tags represent page elements and can be divided into two types:

non-void elements
void elements

1.3.1. Non-void elements#

A non-void element consists of an opening tag like <tag>, content inside the tag, and a closing tag, like </tag>. Closing tags are marked by the forward slash / before the name.

Example syntax of non-void element tag structure:

<tag>
    Tag content is placed between opening and closing tags
</tag>

Attention

Don’t skip the end tag! Some browsers may attempt to repair tags when interpreting HTML, however this behaviour cannot be relied on.

Find more details in the standard.

1.3.2. Void elements#

Void elements are special and do not contain any content. A common example is the horizontal rule tag, which creates a thin horizontal line across the page.

In the example below, the <hr> tag is used between sections on the page. Note that it doesn’t require a closing tag.

<p>This is the last paragraph in the section</p>

<hr>

<h2>Sub-heading</h2>

<p>This is the first paragraph in a new section</p>

Note

Find more details in the standard.

1.3.3. Nesting Tags#

Non-void element tags support nesting, meaning you can place one set of tags inside another. We call a tag that encloses other tags a parent, while the tags inside it are the children.

For example, if you want to make a word bold within a paragraph, you can do this:

<p>This is a <b>bold</b> word in a paragraph.</p>

This is valid because the <b></b> tags are contained within the enclosing contents of the parent <p></p> tags.

Every end tag must be contained within the contents of the tag in which the starting tag is contained.

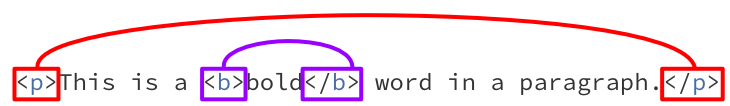

../../_images/rainbow3.png — You can visualise this by drawing a ‘rainbow’ between each pair of opening and closing tags. The arches of the ‘rainbow’ should never cross.#

If you accidentally mis-nest the tags like this:

<p>This is a <b>bold</p> word in a paragraph.</b>

It becomes invalid, because the closing tag of </b> is outside the enclosing contents of the <p></p> tags.

1.3.4. Tag Attributes#

Tag attributes provide a mechanism for supplying more information, setting parameters or customisation.

Key points:

each tag defines its own set of attributes
attributes are specified in the start tag only
attributes are specified as name-value pairs
attributes are not case sensitive, but lowercase is recommended
you should enclose values in quote marks

Here’s the general syntax of tag attributes, where each attribute has an associated value:

<tag attribute1="value1" attribute2="value2">
    The tag content
</tag>

The anchor tag, <a>, used to specify hyperlinks provides a good example of attributes since the hyperlink is set by the href attribute.

<a href="https://google.com/">Let's go to Google!</a>

1.3.5. Tag Rules Summary#

Tags must obey the following rules:

Non-void elements require opening tags and closing tags
Close tags within their nesting scope
Some tags are self-closing
Tag names are not case-sensitive, but lowercase is recommended
Attributes should be properly used inside tags

1.3.6. Glossary#

Child#: A child is an element nested inside another element. For example, if a paragraph is inside a <div>, the paragraph is the child of the <div>.
Elements#: HTML elements are the building blocks of a webpage. They are written with tags, and they define the structure and content of a webpage.
Contents#: The contents of an HTML element are the text, images, or other elements that are placed inside an element’s opening and closing tags. For example, in <p>Hello World!</p>, “Hello World!” is the content of the paragraph element.
Parent#: A parent element is one that contains other elements (its children). For example, if a list item (<li>) is inside a <ul> (unordered list), the <ul> is the parent of the <li>.
Non-void element#: A non-void element is an HTML element that has an opening tag, content, and a matching closing tag.
Void element#: A void element is an HTML element that does not contain content and does not need a closing tag.
Attribute#: An attribute supplies extra information or settings for a tag. Attributes are written in the start tag as name-value pairs.
Hyperlink#: A hyperlink is a link from one webpage or resource to another, commonly created with an anchor tag and an href attribute.
